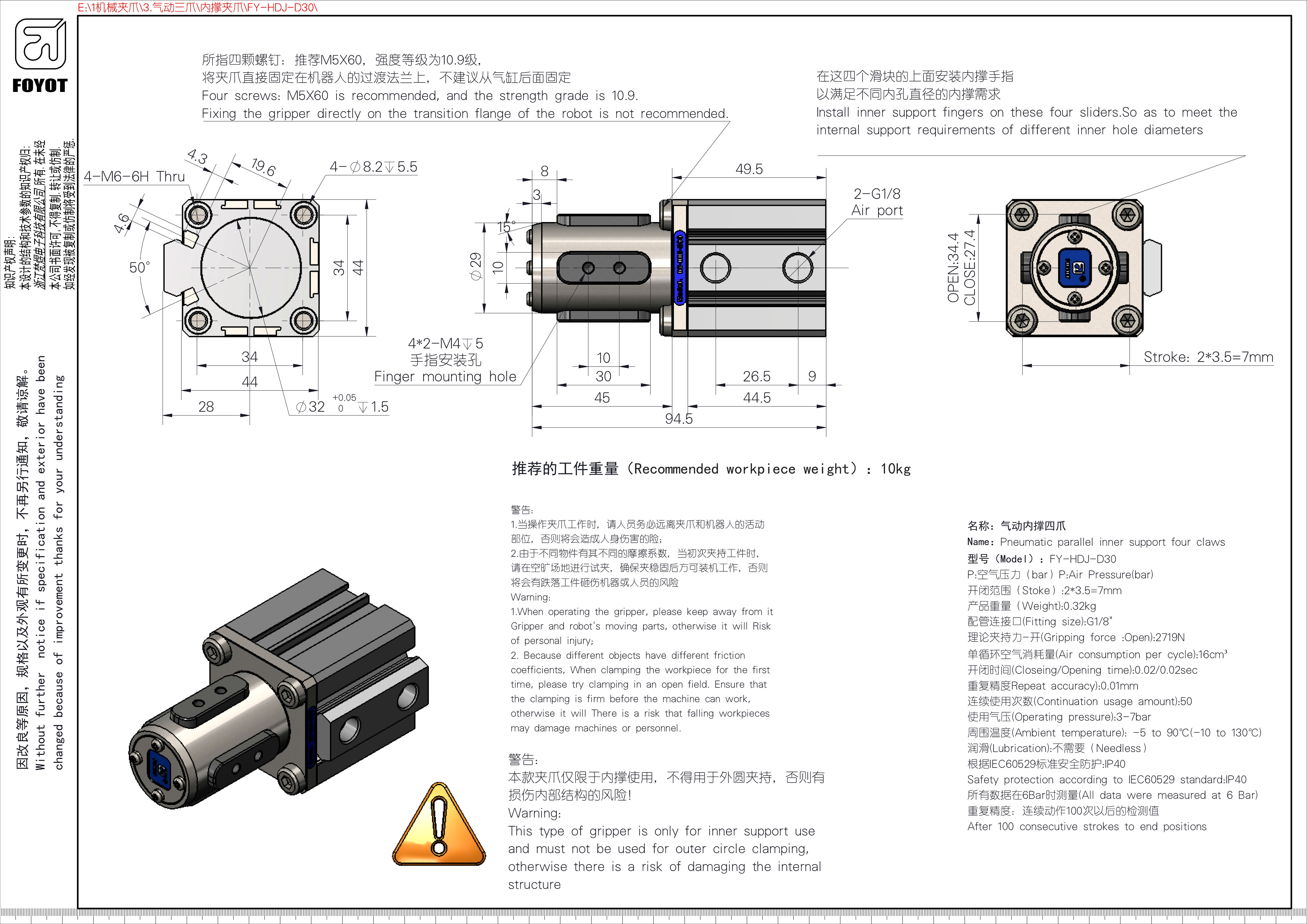

名稱：氣動內撐四爪

Name:Pneumatic parallel inner support four claws

型號(Mode I):FY-HDJ-D30

P:空氣壓力(bar)P:Air Pressure(bar)

開閉范圍(Stoke)：2*3.5=7mm

產品重量(Veight).:0.32kg

配管連接?(Fitting size):G1/8"

理論夾持力-開（Gripping force:Open:2719N

單循環空氣消耗量(Air consumption per cycle):16cm3

開閉時間(Closeing/Opening time):0.02/0.02sec

重復精度Repeat accuracy:0.01mm

連續使用次數(Continuation usage amount):50

使用氣壓（Operating pressure:3-7bar

周圍溫度(Ambient temperature):-5to90℃(-10to130℃)

潤滑(Lubrication)::不需要(Needless)

根據IEC60529標準安全防護：P40

Safety protection according to IEC60529 standard:IP40

所有數據在6Bar時測量(All data were measured at6Bar)

重復精度：連續動作100次以后的檢測值

After 100 consecutive strokes to end positions
