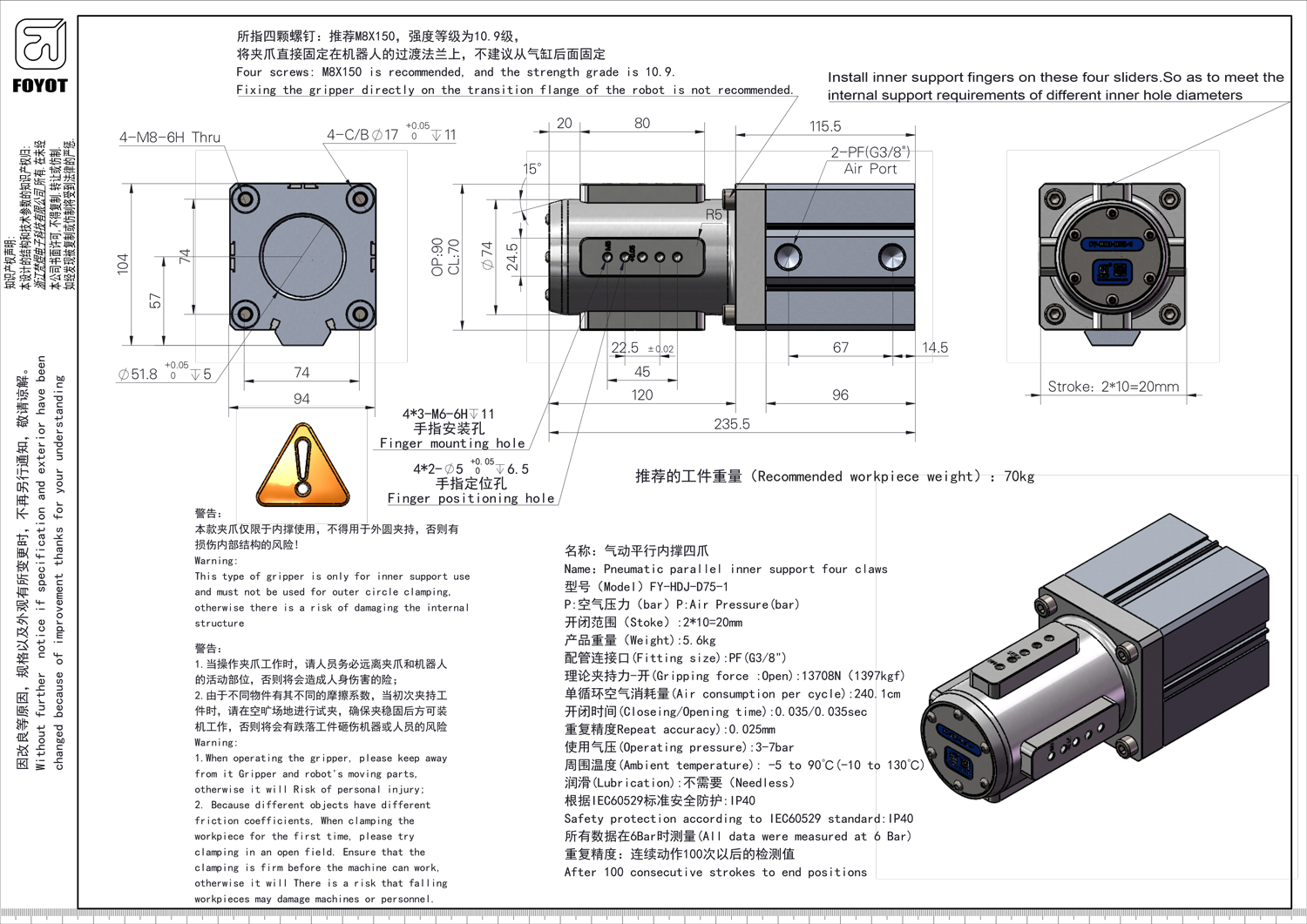

名稱：氣動平行內撐四爪

Name:Pneumatic paral lel inner support four claws

型號(Mode I)FY-HDJ-D75-1

P:空氣壓力(bar)P:Air Pressure(bar)

開閉范圍(Stoke):2*10=20mm

產品重量(We ight):5.6kg

配管連接口(Fitting size):G3/8"

理論夾持力-開(Gripping force:0pen):13708(1397kgf)

單循環空氣消耗量(Air consumption per cycle):240.1cm

開閉時間(Closeing/0 pening time):0.035/0.035sec

重復精度Repeat accuracy):0.025mm

使用氣壓(Operating pressure):3-7bar

周圍溫度(Ambient temperature):-5to90C(-10to130C)

潤滑(Lubrication):不需要(Needless)

根據1EC60529標準安全防護：1P40

Safety protection according to lEC60529 standard:IP40

所有數據在Bar時測量(All data were measured at6Bar)

重復精度：連續動作100次以后的檢測值

After 100 consecutive strokes to end positions
