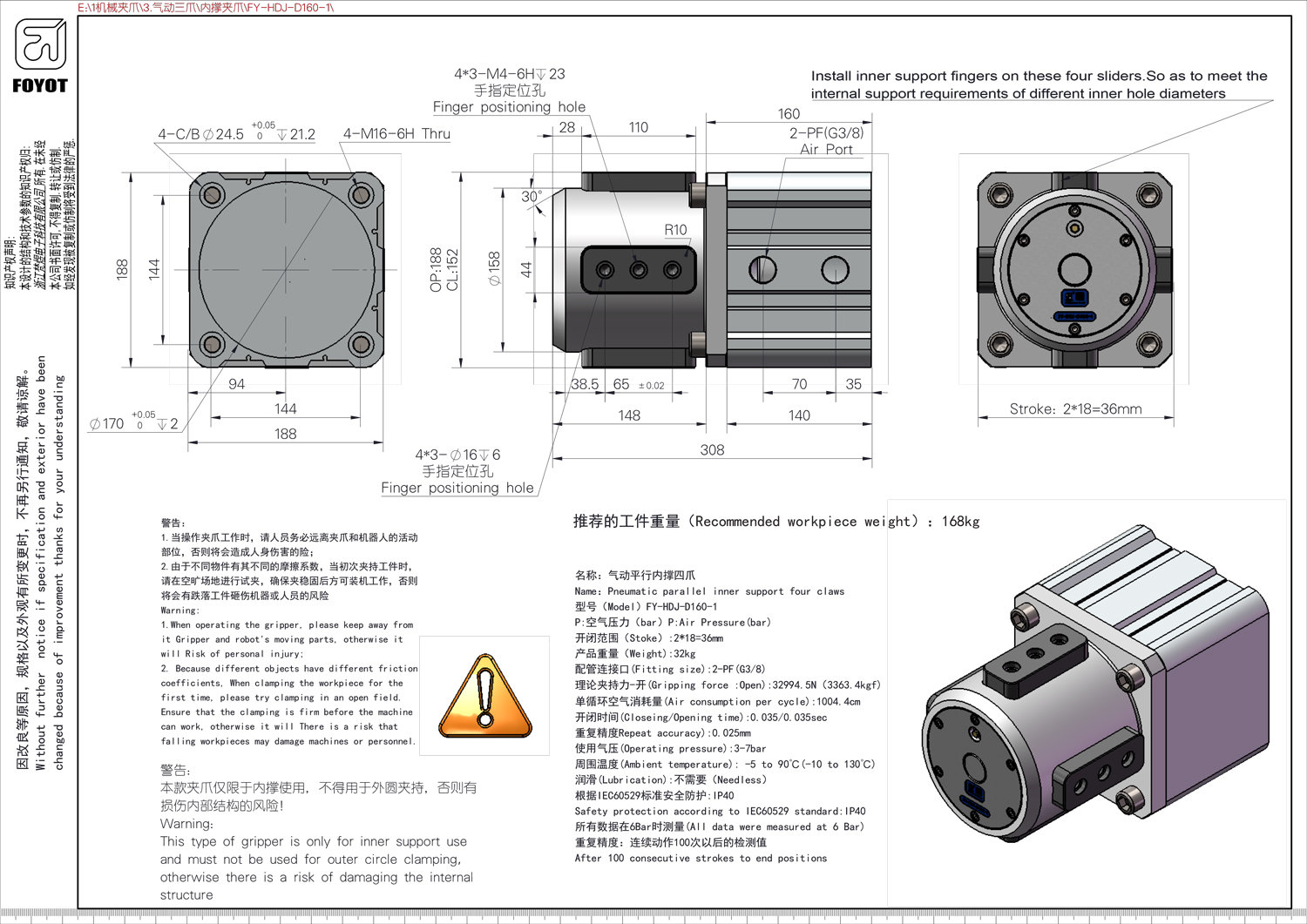

名稱：氣動平行內撐四爪

Name: Pneumatic paral lel inner support four claws

型號(ModeI)FY-HDJ-D160-1

P:空氣壓力P:AirPressure(bar)

開閉范圍(Stoke)：2*18=36mm

產品重量(Weight)：32kg

配管連接口(Fittingsize):G3/8"

理論夾持力-開(Grippingforce:0pen)：32994.5N(3363.4kgf)

單循環空氣消耗量(Airconsumptionpercycle)：1004.4cm

開閉時間(Closeing/0peningtime)：0.035/0.035sec

重復精度Repeataccuracy）：0.025mm

使用氣壓(Operatingpressure):3-7bar

周圍溫度(Ambienttemperature)：-5to90℃(-10to130℃)

潤滑(Lubrication)：不需要(Needless)

根據IEC60529標準安全防護：IP40

Safety protection according to 1EC60529 standard:IP40

所有數據在6Bar時測量(AIIdata weremeasuredat6Bar)

重復精度：連續動作100次以后的檢測值

After 100 consecutive strokes to end positions
