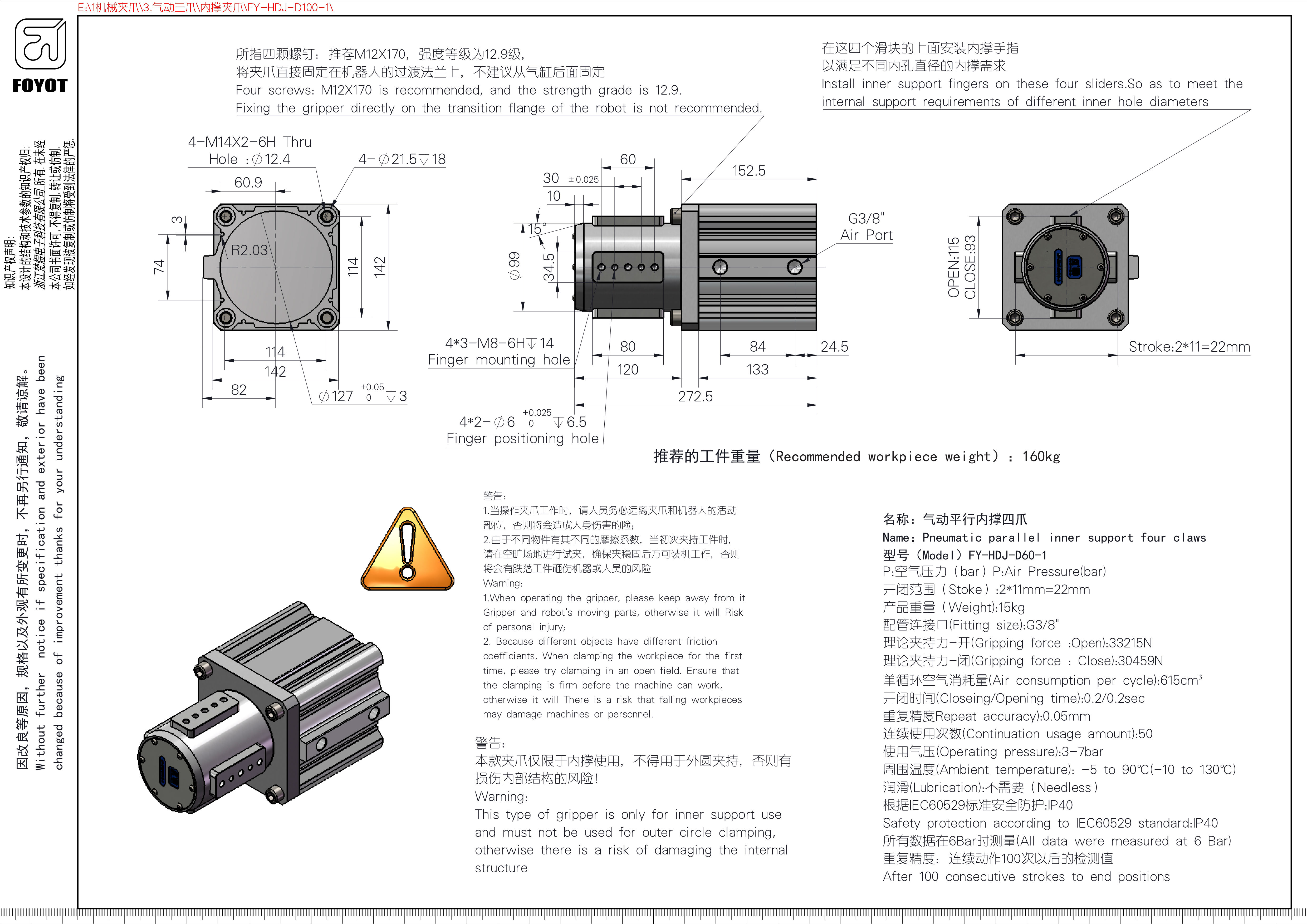

名稱：氣動平行內撐四爪

Name:Pneumatic parallel inner s

support four claws

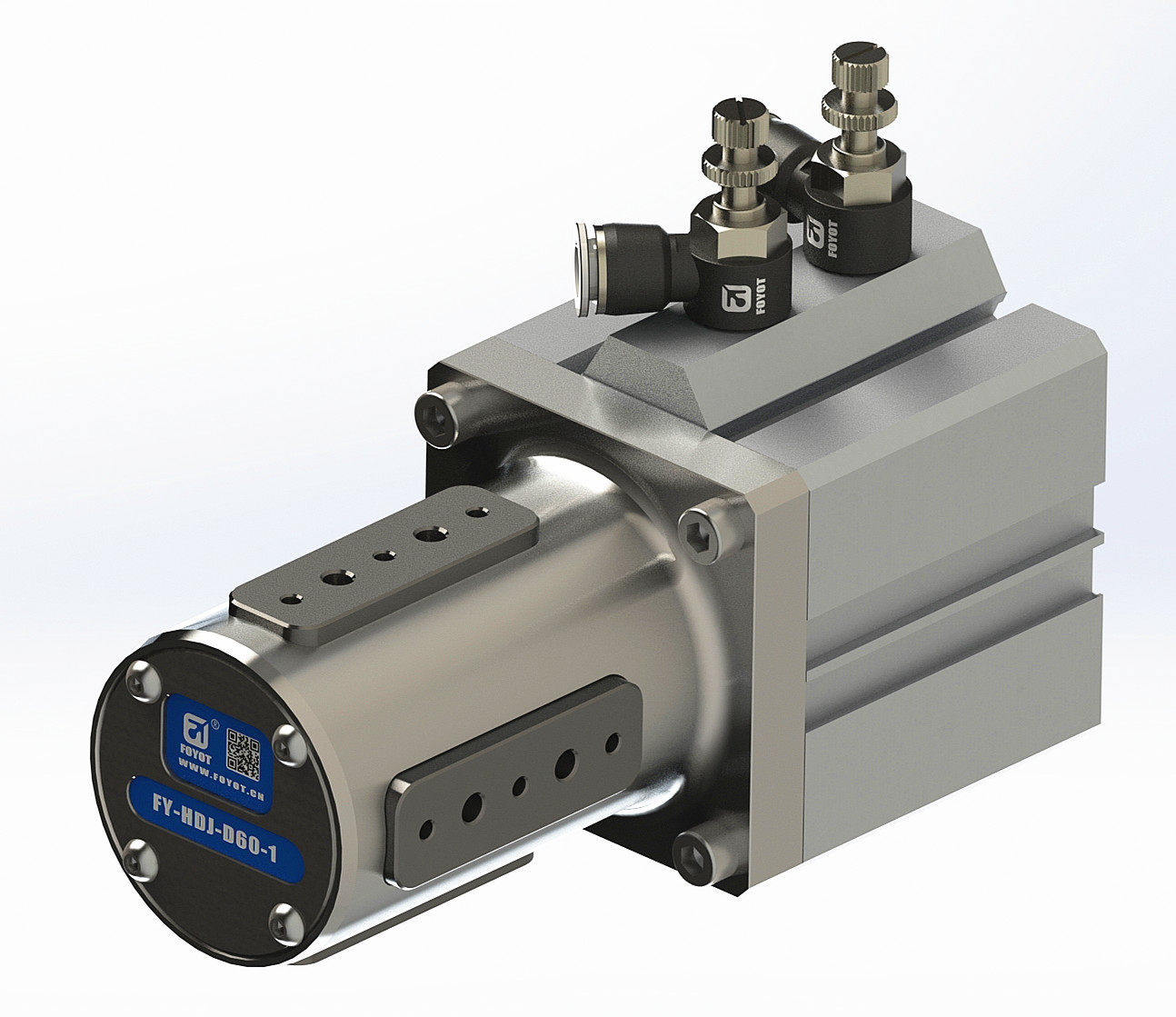

型號(Mode I)FY-HDJ-D60-1

P:空氣壓力P:Air Pressure(bar)

開閉范圍(Stoke):2*11mm=22mm

產品重量(Weight)):15kg

配管連接口(Fitting size):G3/8"

理論夾持力-開（Gripping force:Open:33215N

理論夾持力-閉(Gripping force:Close):30459N

單循環空氣消耗量(Air consumption per cycle):615cm3

開閉時間(Closeing/,Opening time):0.2/0.2sec

重復精度Repeat accuracy):0.05mm

連續使用次數(Continuation usage amount):50

使用氣壓（Operating pressure:3-7bar

周圍溫度(Ambient temperature):-5to90℃(-10to130℃)

潤滑(Lubrication)::不需要(Needless)

根據EC60529標準安全防護：P40

Safety protection according to IEC60529 standard:IP40

所有數據在6Bar時測量(All data were measured at6Bar)

重復精度：連續動作100次以后的檢測值

After 100 consecutive strokes to end positions
