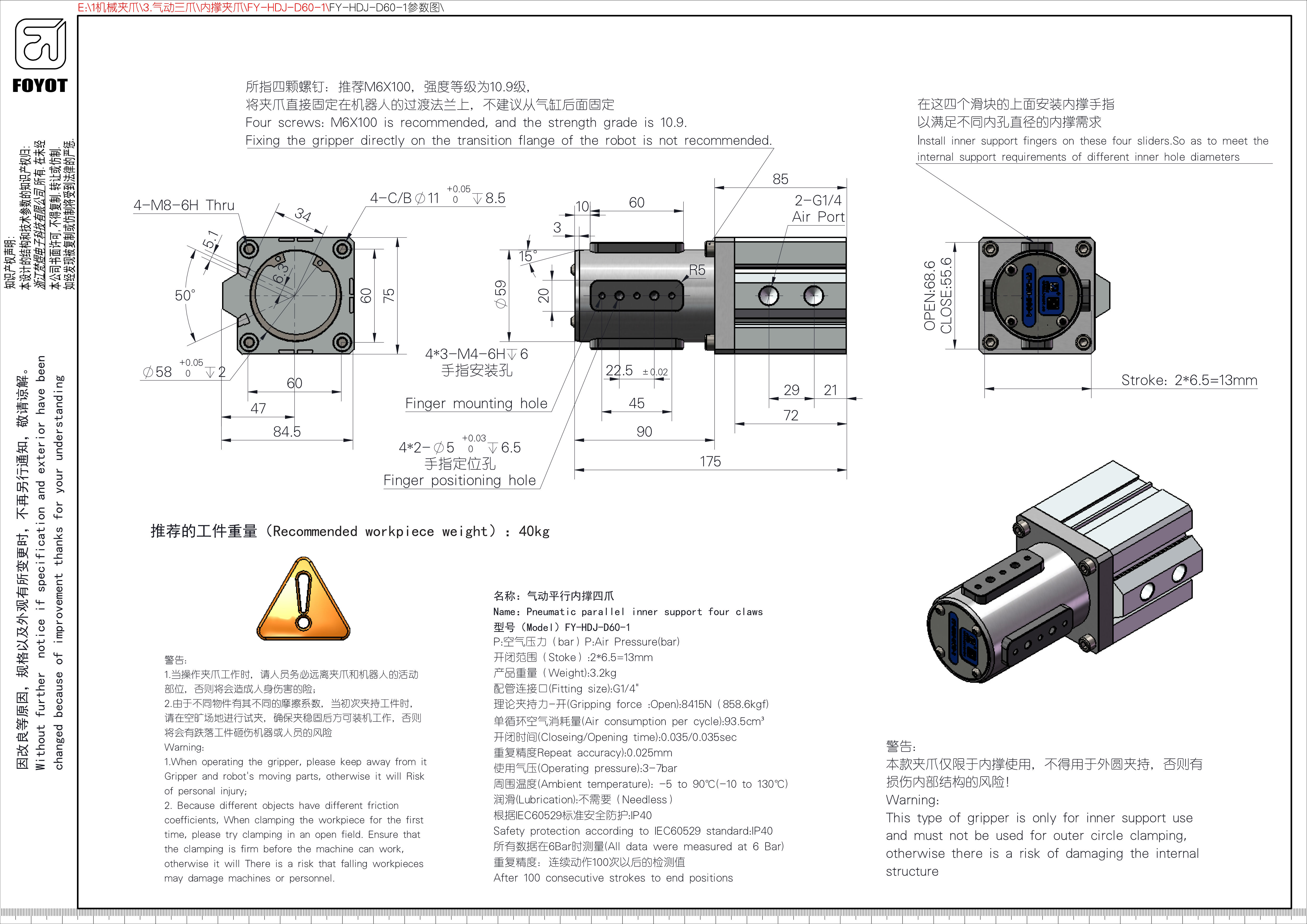

名稱：氣動平行內撐四爪

Name:Pneumatic parallel inner support four claws

型號(Mode l)FY-HDJ-D60-1

P:空氣壓力(bar)P:Air Pressure(bar)

開閉范圍(Stoke):2*6.5=13mm

產品重量(Veight):3.2kg

配管連接?(Fitting size:G1/4"

理論夾持力-開(Gripping force:Open:8415N(858.6kgf)

單循環空氣消耗量(Air consumption per cycle):93.5cm3

開閉時間(Closeing/.Opening time):0.035/0.035sec

重復精度Repeat accuracy).:0.025mm

使用氣壓(Operating pressure):3-7bar

周圍溫度(Ambient temperature):-5to90℃(-10to130℃)

潤滑Lubrication):不需要(Needless)

根據1EC60529標準安全防護：P40

Safety protection according to IEC60529 standard:IP40

所有數據在6Bar時測量(All data were measured at6Bar)

重復精度：連續動作100次以后的檢測值

After 100 consecutive strokes to end positions
