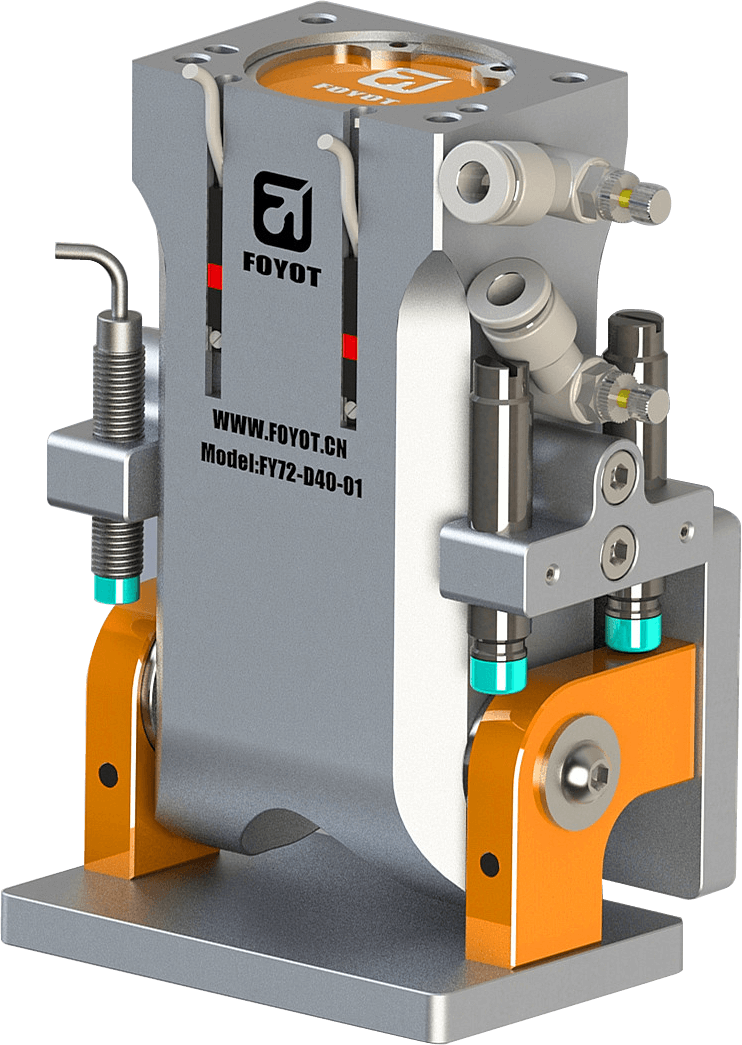

Rocking rotary head parameters
Basic parameters of the side assets group:
JAL TORQUE:6.8N.m(0.5MPa)
WEIGHT:1.4kg
TURNING TIME:0.05~0.1SEC
ROTATION FITTING SIZE:M5
GRIPPER FITTING SIZE:M5-M6
EXTERNAL DIMENSION:139.5X96.5X69.5
REPETITION ACCURACY:±0.05°
OPERATION PRESSURE:0.2~0.8MPa
AMBIENT TEMPERATURE:-5~60℃
ROTATION ANGLE:90°
